Butterfly Valves

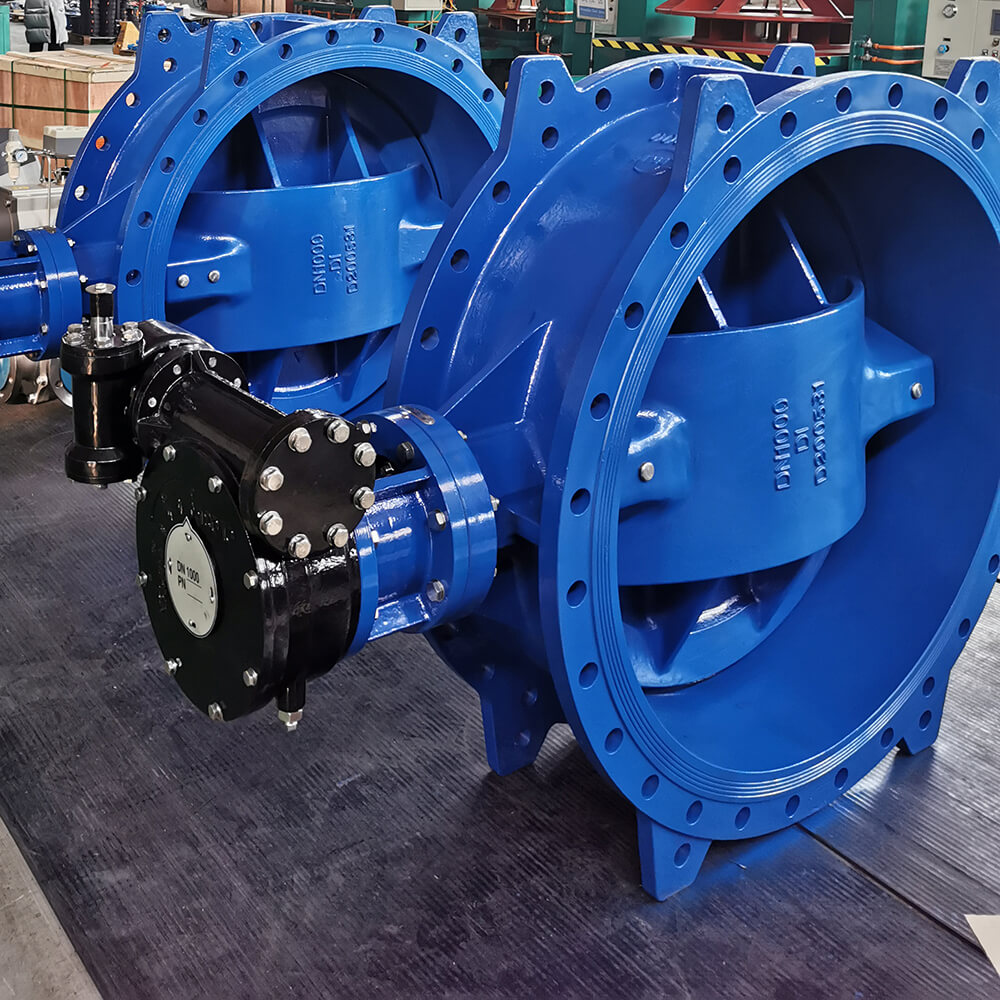

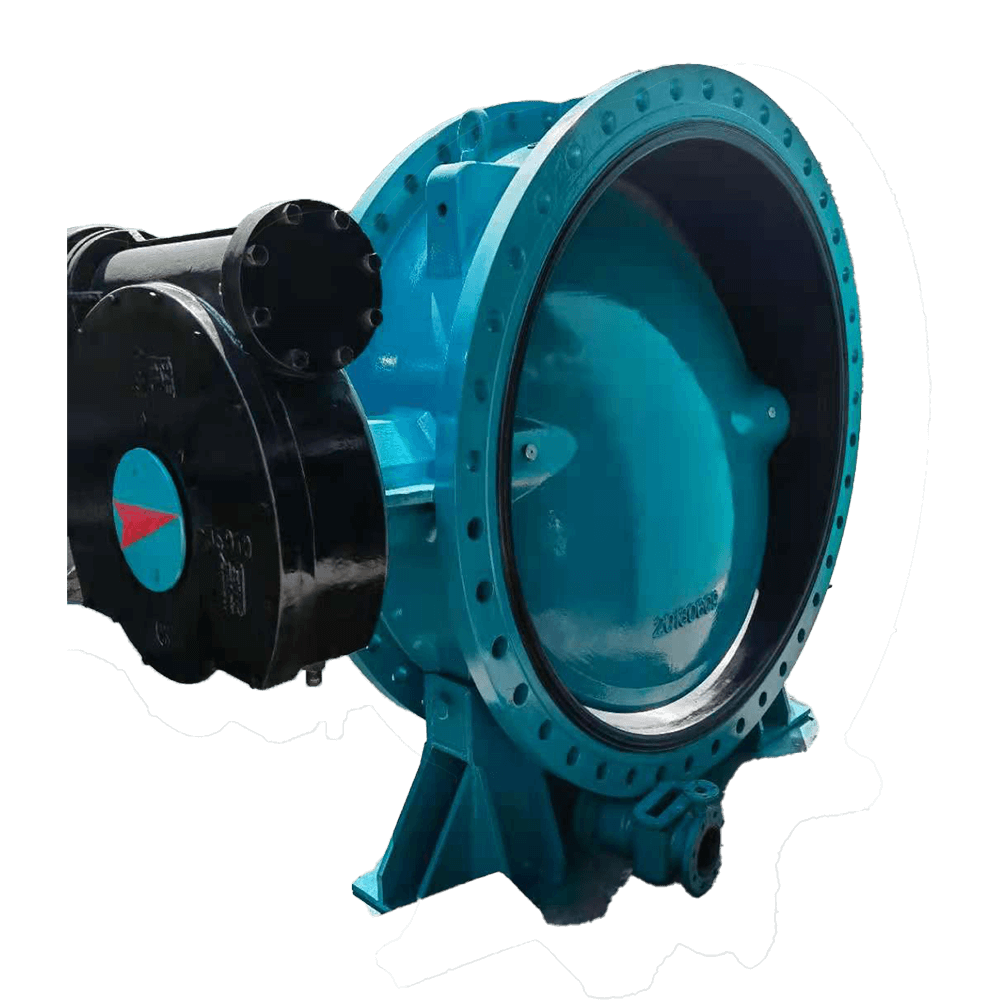

AWWA C504 Double Eccentric Butterfly Valve
Model C504
Product Facts
- SizeDN40-DN1800; 2”-72”/DN50-DN1800
- PressureClass125B; Class150B; Class250B; Class125B/Class150B/Class250B
Certification and final configuration are confirmed for the quoted product.
Product specifications
Specifications
- Size
- DN40-DN1800; 2”-72”/DN50-DN1800
- Pressure
- Class125B; Class150B; Class250B; Class125B/Class150B/Class250B
Published values describe the available catalogue reference. Final configuration is confirmed against the RFQ.
Before you request a quote
Define the AWWA valve duty before choosing the actuator
Use this AWWA C504 butterfly valve reference to begin a waterworks project enquiry. The catalogue's AWWA class designations must be checked in their own standard system, not treated as equivalent ASME classes.
Compare specifications below- State the required AWWA class, nominal size and flange connection.
- Include the operating pressure, flow conditions and any transient requirements.
- Specify manual gearbox or powered actuation and the required control signal.
- Request project-specific drawings and required test records with the quotation.
Does AWWA C504 in the product name mean a certificate is included?
No. A standard reference describes the requested product basis. Available inspection records and any required third-party certification are checked for the exact quoted configuration.
Application Views
Application imagery is shown separately from the product record and is not used as the model identifier.
Procurement Summary
Published facts for this product include Size: DN40-DN1800, 2”-72”/DN50-DN1800; Pressure: Class125B, Class150B, Class250B, Class125B/Class150B/Class250B. Share the required model, project specification and document list for confirmation before quotation.
Document Status
Required documents are confirmed for the quoted product and project requirements.
