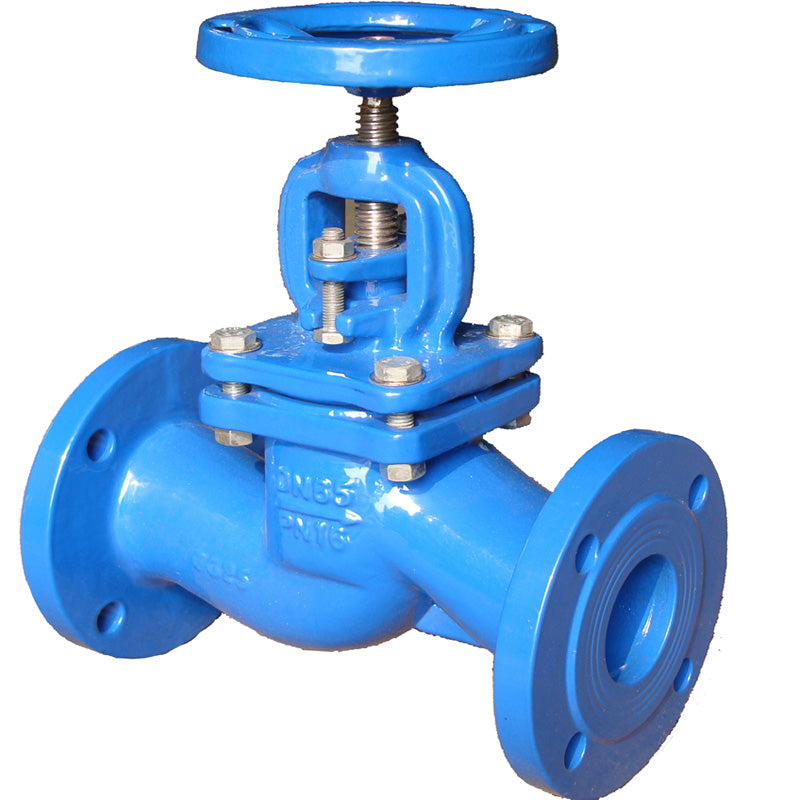

ANSI Globe Valve

Configured to your size, pressure and application

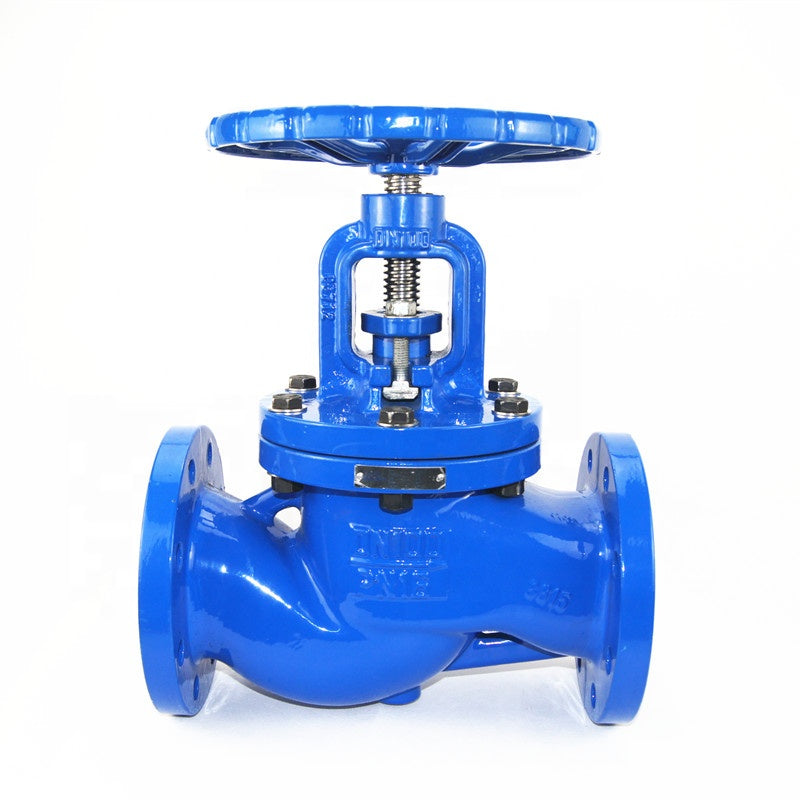

ANSI Globe Valve — BAODUN catalogue photograph
Catalogue photograph. Final materials, dimensions and actuation are confirmed with your quotation.

Product Facts

  • SizeDN15–DN300 (1/2–12 in); see the table for each pressure class
  • PressureClass 150; Class 300; Class 600
  • MaterialBody options: A216 WCB, A217 WC6, A352 LCB, A351 CF8
  • ConnectionFlanged; ASME B16.5
Technical sheet availableReview available technical references below.

Certification and final configuration are confirmed for the quoted product.

Request a QuoteCompare Models

Product specifications

Specifications

Size
DN15–DN300 (1/2–12 in); see the table for each pressure class
Pressure
Class 150; Class 300; Class 600
Material
Body options: A216 WCB, A217 WC6, A352 LCB, A351 CF8
Connection
Flanged; ASME B16.5
Standard
Face-to-face: ASME B16.10; Inspection and testing reference: API 598

Published values describe the available catalogue reference. Final configuration is confirmed against the RFQ.

Before you request a quote

Select an ANSI flanged globe valve

The catalogue lists Class 150, Class 300 and Class 600 flanged globe valve tables. Start with the required pressure class, then check the matching size and face-to-face dimensions in the technical sheets below.

Compare specifications below
  • Specify the ASME pressure class; do not substitute a PN designation.
  • Match the required body and trim material to the medium and operating temperature.
  • Check flange drilling, facing and the class-specific face-to-face dimension.
  • Include the required inspection records in your RFQ. A listed test standard is not a product certificate.
Are all listed material and size combinations available?

The tables describe catalogue options, not live stock or every possible combination. BAODUN confirms the final body, trim, size, pressure class and document scope in the quotation.

Technical Sheets and Drawings

The first technical sheet is open for direct review. Expand only the additional pages you need. Final dimensions and document scope are confirmed against the RFQ before quotation.

Catalogue page 199Sheet 1 of 3
Open full-resolution sheetANSI Globe Valve technical sheet page 199
Catalogue page 200Sheet 2 of 3
Open full-resolution sheetANSI Globe Valve technical sheet page 200
Catalogue page 201Sheet 3 of 3
Open full-resolution sheetANSI Globe Valve technical sheet page 201

Procurement Summary

Catalogue reference: Size: DN15–DN300 (1/2–12 in); see the table for each pressure class. Pressure: Class 150; Class 300; Class 600. Material: Body options: A216 WCB, A217 WC6, A352 LCB, A351 CF8. Connection: Flanged; ASME B16.5. Standard: Face-to-face: ASME B16.10; Inspection and testing reference: API 598. Final configuration and documents are confirmed in the quotation.

Open the Buyer Comparison Guide

Document Status

Required documents are confirmed for the quoted product and project requirements.
